| Processor |
| CPU |
Intel® Celeron J3455 / Celeron J1900 / i5-7200U |
| Frequency |
Quad Core 2.3GHz / Quad Core 2GHz / Dual Core 2.5 GHz |
| L3 Cache |
2MB/2MB/3MB |
| Chipset |
Apollo Lake/Intel Bay Trail/Integrated PCH-LP |
| Memory |
Support DDR3L 1333 MHz 1 * 240-pin SO-DIMM Slot Up to 8GB |
| Storage Medium |
1 x mSATA |
| I/O Interface |
| LAN |
LAN1/2: Intel i211 or i225 Gbe LAN controller RJ-45 |
| USB |
1 x USB3.0, 3 x USB2.0 |
| COM |
2 x RS-232 optional RS-485 interface with surge protection |

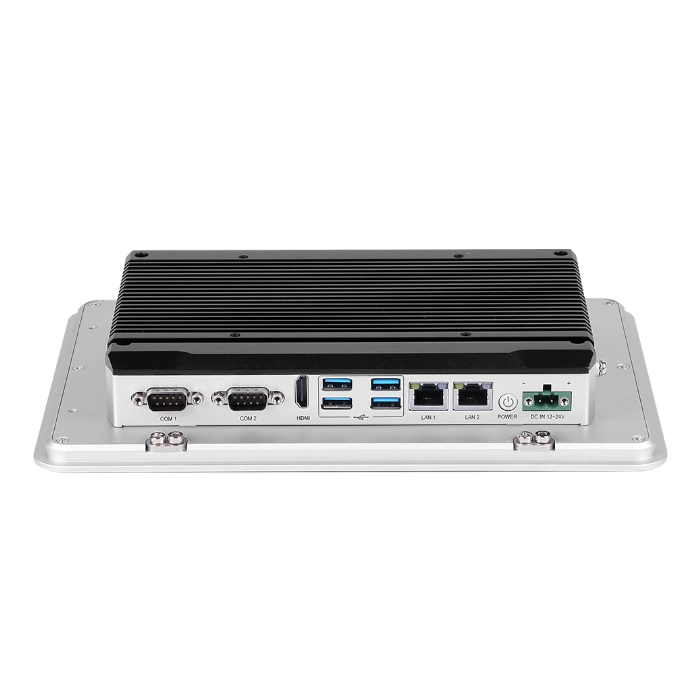

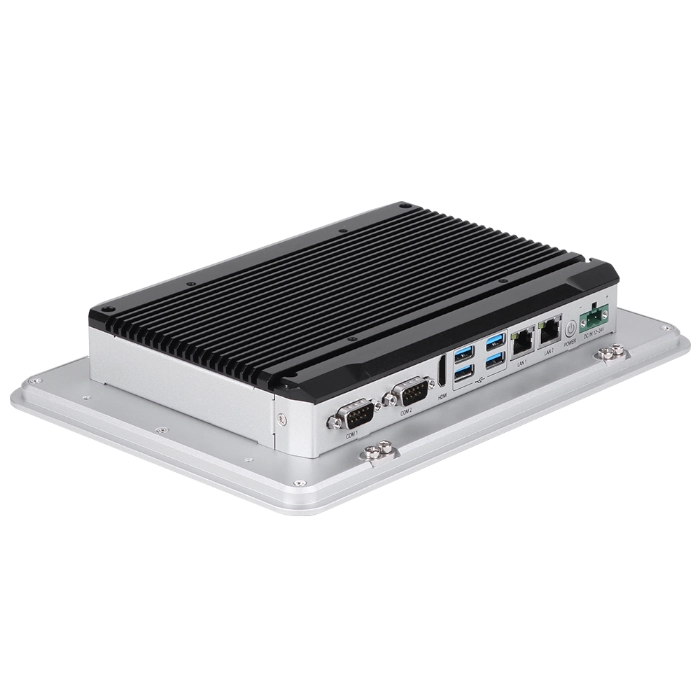

| Rear I/O |
2 x GLAN / 4 x USB / 2 x COM / DC-in / HDMI |
| Physical |
| Dimensions |
269.16mm x 187.8mm x 45mm (10.6" x 7.39" x 1.77") |
| Cut Out Size |
261mm x 180mm (10.28" x 7.09") |
| Weight |
1.92kg |
| Operating System |
| OS |
Windows 7, Windows 8, Windows 10, Linux |
| Power |
| Input Voltage |
12-24VDC |
| Power Dissipation |
38.6 Watt MAX |
| LCD |
| LCD Size |
10.1" TFT |
| Resolution |
1280 x 800 |
| Colors |
16.7MB |
| Active Area |
216.96mm x 135.6mm |
| Backlight |
LED |
| MTBF |
15000hrs |
| Pixel Pitch |
0.1695 x 0.1695 |
| Luminance |
350cd/m2 |
| Contrast Ratio |
800:1 |
| Viewing Angle |
(L) 85 / (R) 85 / (T) 85 / (B) 85 |
| Touch Screen |
| Touchscreen Type |
Multi-point capacitive touch screen |
| Transmittance |
> 87% |
| Controller interface |
USB |
| Driver Support |
Windows 7, Windows 8, Windows 10, Linux |
| Surface hardness |
Mohs' Number 7H |
| Multi-touch |
10 points (windows system) |
| Environment |
| Work temperature |
-10 ~ 50°C (-14~122°F) (Wide temperature SSD) |
| Storage Temperature |
-20 ~ 70°C (-4 ~ 158°F) |
| Relative Humidity |
10~95% RH@40°C Non condensing |
| Vibration |
Operating Random Vibration Test 5~500Hz 1.5Grms@with SSD, follow IEC 60068-2-64 |
| Shock |
Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| EMC |
| EMC |
CE/FCC Class A |
| Water-proof |
| Water-proof |
Front panel IP65 |
| Expansion Slot |
| MiniPCIe |
1 * MINI-PCIe slot extended to 3G and wifi card |
