| Physical |
| Dimensions |
300.5mm x 234.5mm x 50mm |
| Cut Out Size |
282mm x 222mm |
| Weight |
2.5kg |
| Front Color |
Silver (plus PET film) |
| Mounting |
| Mount |
Embedded panel and VESA wall mounting |
| Power |
| Power Supply |
DC voltage input |
| LCD |
| LCD Size |
10.4" TFT LCD |
| Resolution |
800×600 |
| Colors |
16.2MB |
| Active Area |
211.2mm x 158.4mm (8.31" x 6.24") |
| Backlight |
LED |
| MTBF |
30000hrs |
| Pixel Pitch |
0.264 x 0.264 |
| Luminance |
250cd/m2 |
| Contrast Ratio |
500:1 |
| Viewing Angle |
(H) 100 / (V) 130 |
| Touch Screen |
| Touchscreen Type |
Resistive touch screen |
| Resolution |
800 x 600 |
| Transmittance |
More than 81% |
| Controller Interface |
USB/ RS-232C |
| Driver Support |
Windows XP, Windows 7, Windows 8, Windows 10, Linux |
| Response Time |
> 5ms |
| Surface Hardness |
3H |
| Click Life |
250g / 35,000,000 times |
| Draw Life |
250g / 5,000,000 times |
| Multi-touch |
Five-wire analog resistive |
| Environment |
| Work Temperature |
-10 ~ 50°C (14~122℉) |
| Storage Temperature |
-20°C ~ 60°C (-4~140℉) |
| Relative Humidity |
5~95% (Non condensation) |
| Vibration |
SSD applied: 1.5 Grms IEC 60068-2-64 random 5 ~ 500 Hz 1 hr/axis |
| Shock |
SSD applied: 10 G IEC 60068-2-64 Half-sine wave 11ms duration |
| EMC |
| EMC |
CE/FCC Class A |
| Other |
| Water-proof |
Front panel IP65 |
| Model |
Specifications |
| 乐虎游戏官方网站入口 PANEL5000-A102-TS |

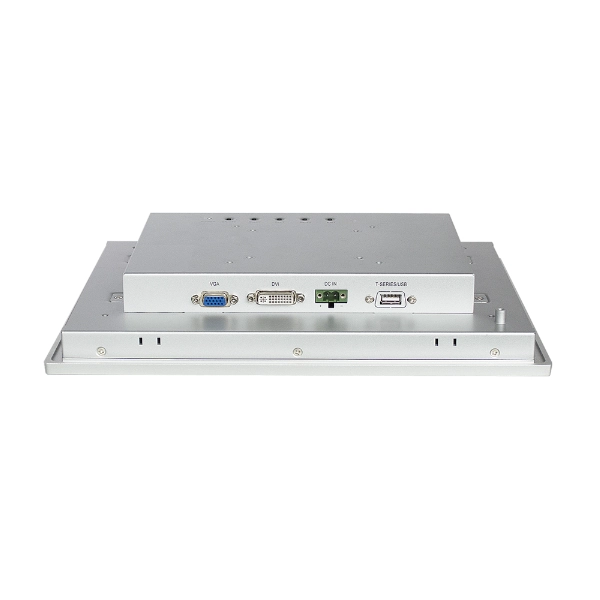

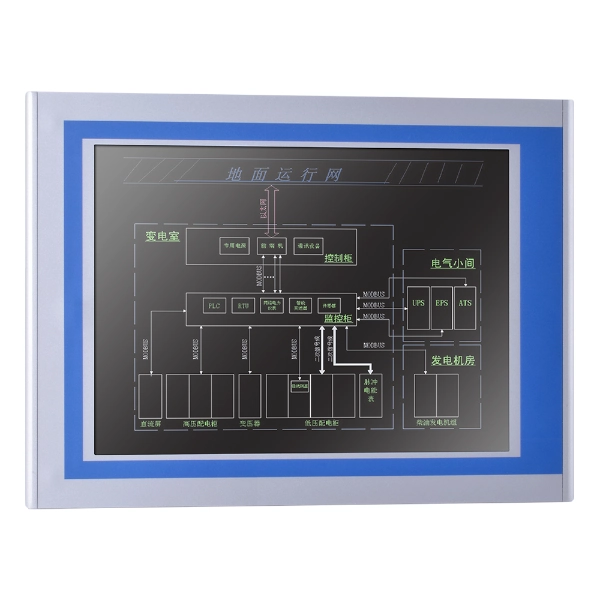

10.4-inch TFT LCD, Resolution 800×600, VGA, DVI, Resistive Touch Screen, COM port, DC 12-24V input, includes adapter |
| 乐虎游戏官方网站入口 PANEL5000-A102-TU |
10.4-inch TFT LCD, Resolution 800×600, VGA, DVI, Resistive Touch Screen, USB port, DC 12-24V input, includes adapter |
| 乐虎游戏官方网站入口 PANEL5000-A102-C |
10.4-inch TFT LCD, Resolution 800×600, VGA, DVI, Glass, DC 12-24V input, includes adapter |
