乐虎唯一官方 TPC6000-C1853

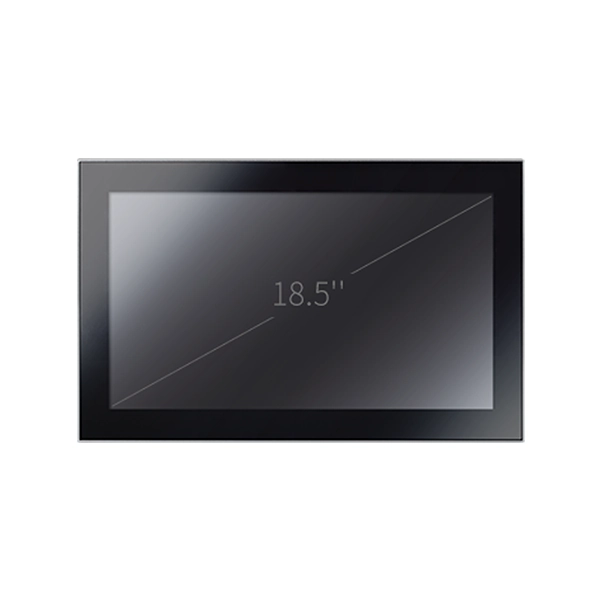

18.5 inch Bezel free capacitive PANEL PC based on Intel® Celeron® J6412 / J1900 / Core™ i5 7200U
- Aluminum-magnesium alloy box, Front panel IP65
- 18.5”HD TFT, Optimum resolution 1366 x 768, Projected capacitive touch screen
- Support Intel® Celeron® J6412 / 4205U / J1900 / Core™ i5 7200U
- 2x Gigabit Ethernet ports, 2x RS-232 COM, 8KV electrostatic protection, 600W TVS surge protection, RS485 support automatic flow control
- Wide voltage power supply：DC12~24V. Support reverse polarity protection, overvoltage protection, overcurrent protection
- Extend WIFI/3G/4G network/1 x Mini-PCIe slot/1 x EasyBUS slot

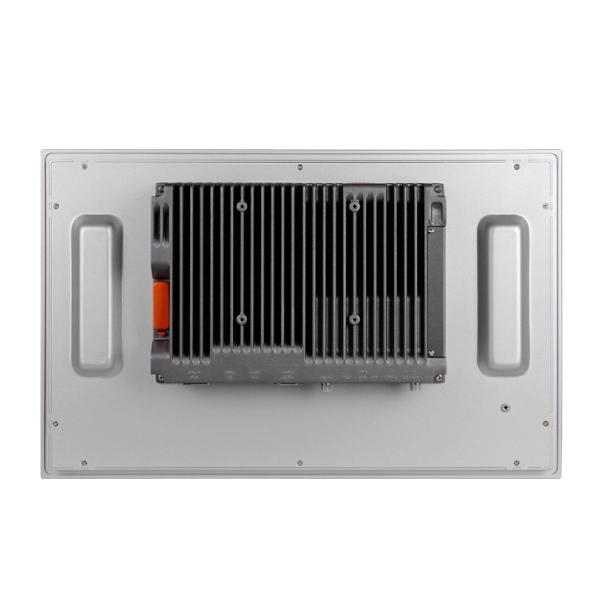

- Fanless design, VESA Mount, Panel Mount

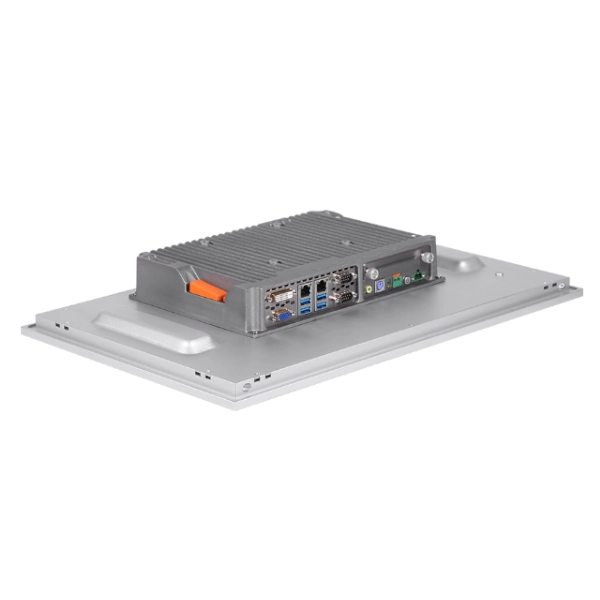

- I/O:VGA / DVI / 2GLAN / 4USB / 2COM / AUDIO
Multi-touch Panel PC Product Information
| Processor | |
|---|---|
| CPU | Intel® Celeron® J6412 / J1900 / Core™ i5 7200U |
| Frequency | Quad core 2.0GHz / Dual Core 1.8GHz / Quad core 2.0GHz / Dual Core 2.5GHz |
| L3 Cache | 1.5MB/2MB/2MB/3MB |
| Chipset | Integrated PCH-LP |
| Memory | 1×DDR4-2400MHz, max 16GB / 1×DDR3L-1333MHz, max 8GB |
| Storage Medium | 1 x 2.5" SATA bay + 1 x mSATA |
| I/O Interface | |
| LAN | 2 x Intel i211 1000Mbps RJ-45 with surge and lightning protection, 15KV ESD protection |
| USB | 4 x USB3.0/2.0/1.1 |
| COM | 2 x RS-232/RS-485 with surge protection, RS485 supports automatic flow control |
| Audio | Realtek ACL662 Audio controller |

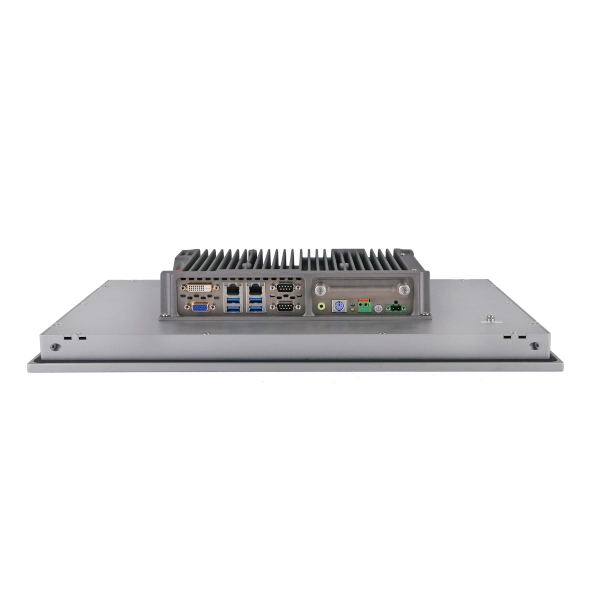

| Rear I/O | DVI-D / 2 x GLAN / 4 x USB / 2 x COM / 2 x PS2 / Line-out / Mic-in |
| Physical | |
| Dimensions | 480mm x 304mm x 66mm (18.90" x 11.97" x 2.60") |
| Cut Out Size | 463mm x 287mm (18.23" x 11.30") |
| Weight | 5.8kg |
| Operating System | |
| OS | Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Ubuntu, QNX, VXWORKS |
| Power | |
| Input Voltage | 12-24VDC ±10%, supports reverse polarity protection, overvoltage protection, overcurrent protection |
| Power Dissipation | 36W (Maximum) |
| LCD | |
| LCD Size | 18.5" HD TFT |
| Resolution | 1366 x 768 |
| Colors | 16.7MB |
| Active Area | 409.8mm x 230.4mm (16.13" x 9.07") |
| Backlight | LED |
| MTBF | 30000hrs |
| Pixel Pitch | 0.300 x 0.300 |
| Luminance | 250cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | (L) 85 / (R) 85 / (T) 80 / (B) 80 |
| Touch Screen | |
| Touchscreen Type | Multi-point capacitive touch screen |
| Transmittance | > 87% |
| Controller interface | USB |
| Driver Support | Windows 7, Windows 8, Windows 10, Linux |
| Surface hardness | Mohs' 7H |
| Multi-touch | 10 points (Windows system) |
| Environment | |
| Work temperature | -20 ~ 60°C (-4~140°F) (Wide temperature SSD); 0 ~ 45°C (32~113°F) (General temperature HDD/SSD) |
| Storage Temperature | -30~80℃（-22~176°F） |
| Relative Humidity | 5~95%@40℃(Non-condensing) |
| Vibration | SSD applied: 1.5 Grms IEC 60068-2-64 random 5 ~ 500 Hz 1 hr/axis |
| Shock | SSD applied: 10 G IEC 60068-2-27 Half-sine wave 11ms duration |
| EMC | |
| EMC | CE/FCC Class B |
| Water-proof | |
| Water-proof | Front panel IP65 |
Click below to download the datasheets
乐虎唯一官方 TPC6000-C1853 Datasheet
TPC6000-C1043 Datasheet
TPC6000-C123 Datasheet
TPC6000-C153 Datasheet
TPC6000-C1563 Datasheet
TPC6000-C173 Datasheet
TPC6000-C193 Datasheet
TPC6000-C2153 Datasheet
| Model | Specification |
|---|---|
| 乐虎唯一官方 TPC6000-C1853W-L-J6412 | 18.5" LCD, Intel J6412 2.0G Quad Core CPU, No Memory, No Hard, 2*RS-232/485 (Optional), 2*LAN, 4*USB3.0, 1366*768, DC12V-24V input |
| 乐虎唯一官方 TPC6000-C1853W-L-J1900 | 18.5" LCD, Intel J1900 2.0G Quad Core CPU, No Memory, No Hard, 2*RS-232/485 (Optional), 2*LAN, 4*USB3.0, 1366*768, DC12V-24V input |
| 乐虎唯一官方 TPC6000-C1853W-L-4205U | 18.5" LCD, Intel 4205U Dual Core 1.8GHz CPU, No Memory, No Hard, 2*RS-232/485 (Optional), 2*LAN, 4*USB3.0, 1366*768, DC12V-24V input |
| 乐虎唯一官方 TPC6000-C1853W-L-WL8145U | 18.5" LCD, Intel 4205U Dual Core 1.8GHz CPU, No Memory, No Hard, 2*RS-232/485 (Optional), 2*LAN, 4*USB3.0, 1366*768, DC12V-24V input |
| 乐虎唯一官方 TPC6000-C1853W-L-SL7200U | 18.5" LCD, Intel 8145U Dual Core 2.1 GHz CPU, No Memory, No Hard, 2*RS-232/485 (Optional), 2*LAN, 4*USB3.0, 1366*768, DC12V-24V input |
| Product Model | Specifications |
|---|---|
| Adapter | Input: 100~240V~50/60Hz 1.7A, Output: +12.0V—5A 60Watt |
| Memory | DDR3 2G/4G/8G, max to 8G |
| Storage |
Mini SATA SSD: 32G/64G/128G/256G/512G 2.5” SSD: 32G/64G/128G/256G/512G 2.5” HDD: 500G/1T |
| Wifi | 7260 Series |
| 3G/4G module | EC20, EC25, EG25, etc. |
